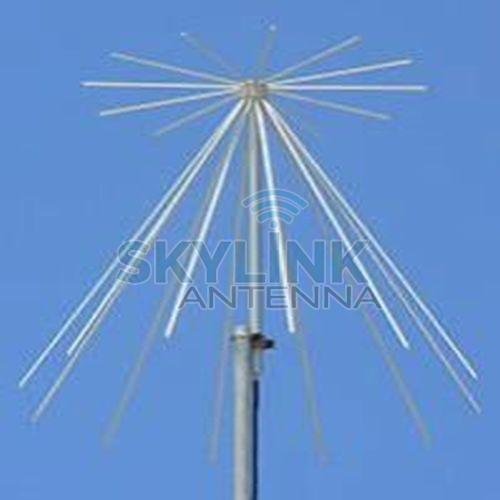

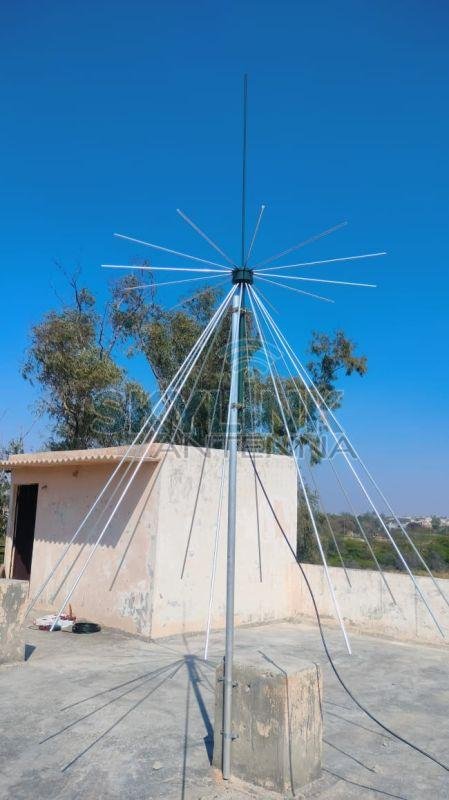

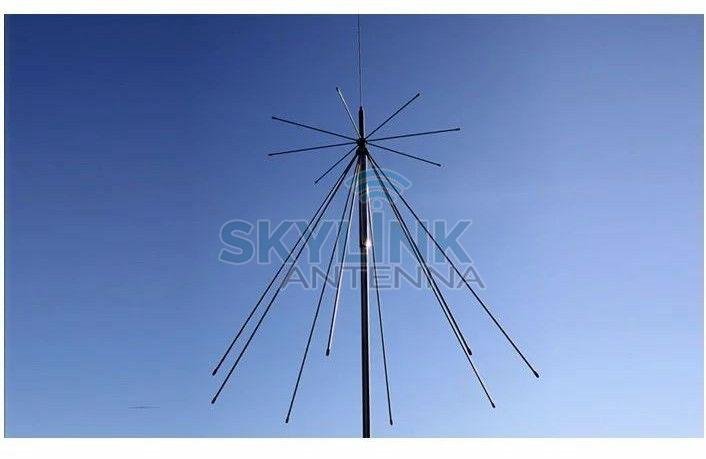

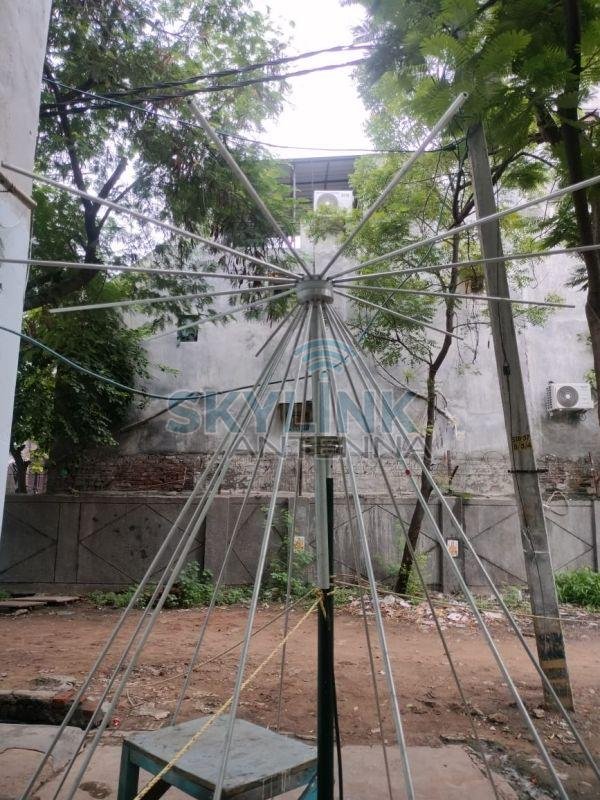

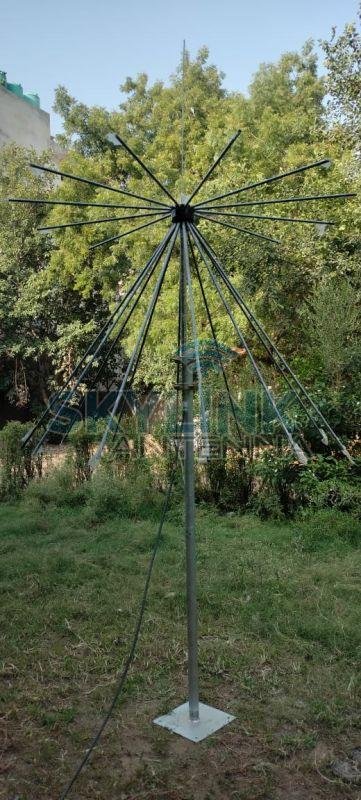

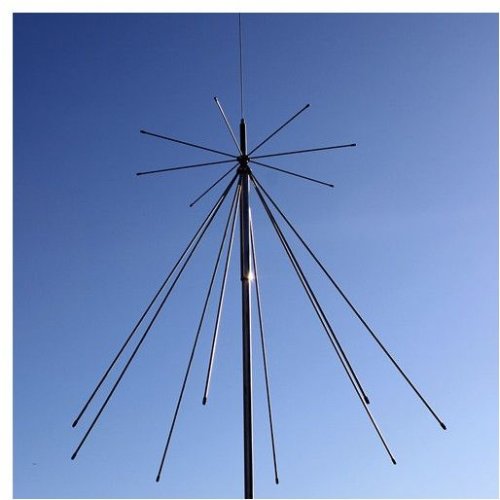

An Omni Discone Antenna is a broadband, vertically polarized, omnidirectional antenna. It uses a disc + cone structure, which allows it to cover a very wide frequency range while keeping low VSWR and constant impedance.
Because of its wideband nature, it is often called a "universal antenna" and is widely used in monitoring, scanning, public safety, military communication, and amateur radio.
🔹 Key Features
Ultra-wide frequency range (VHF to UHF and higher)
360° omni-directional coverage in horizontal plane
Vertical polarization → compatible with base stations

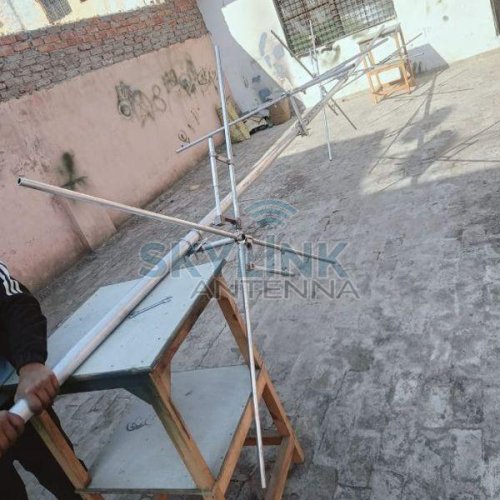

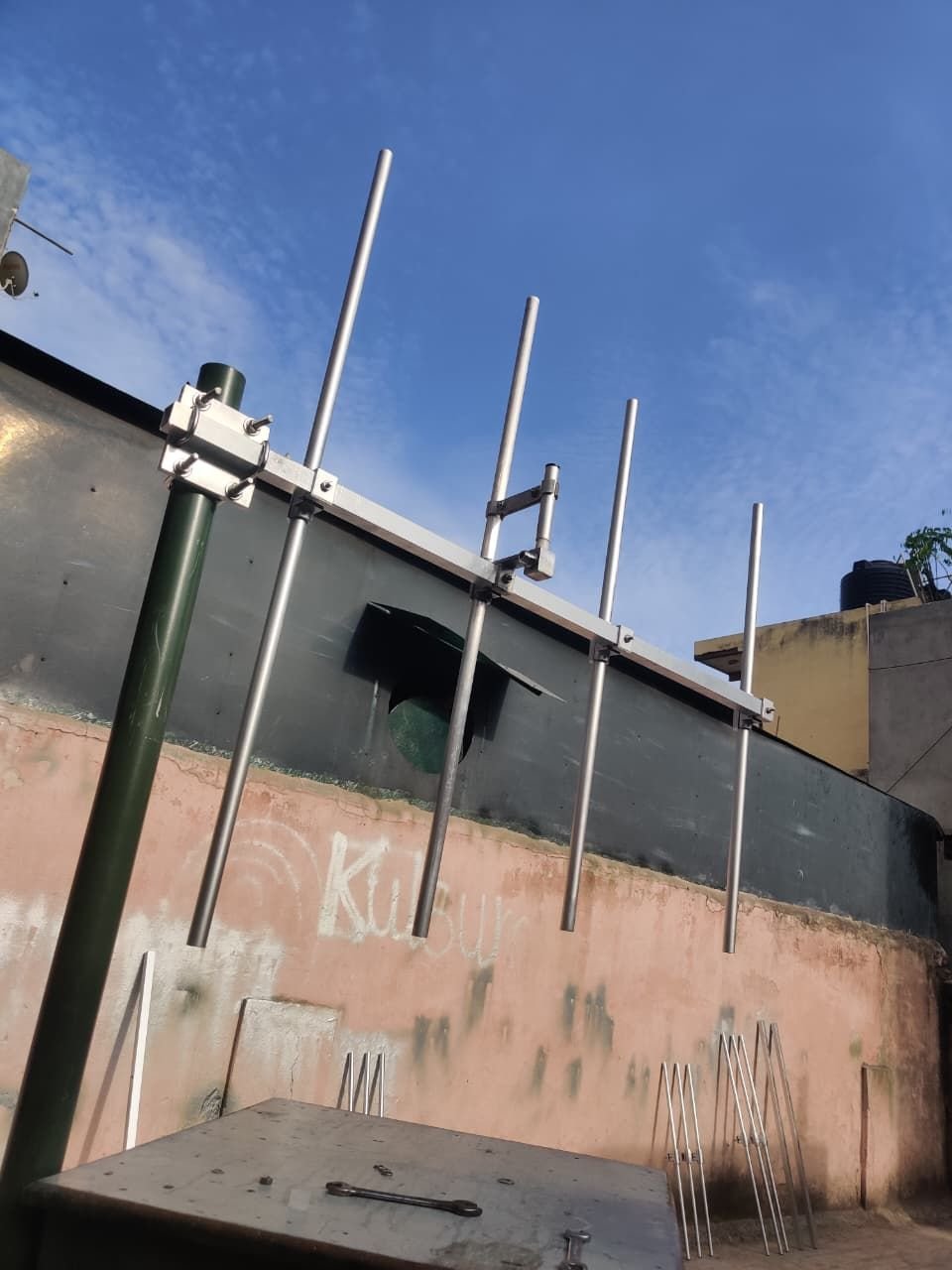

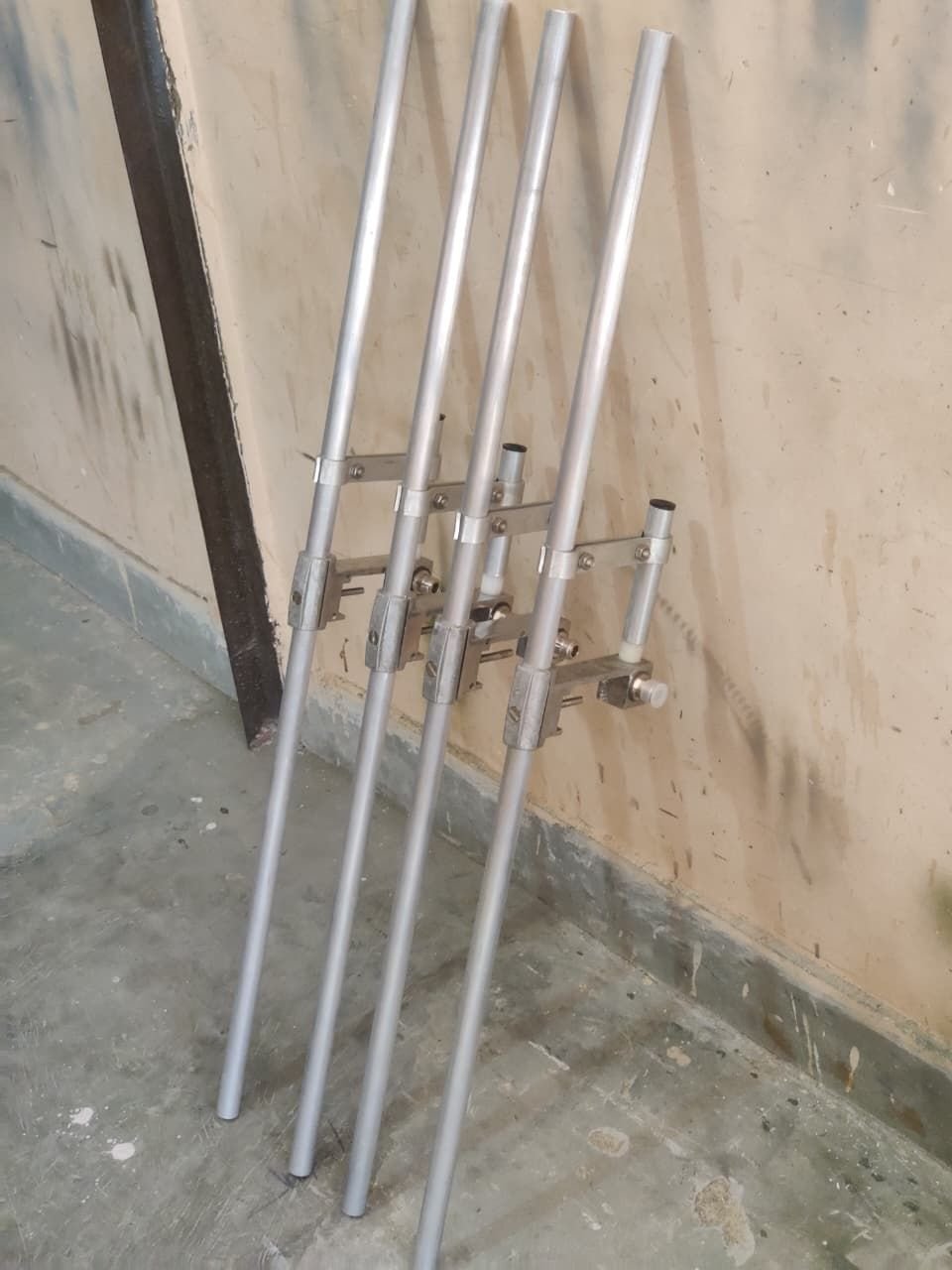

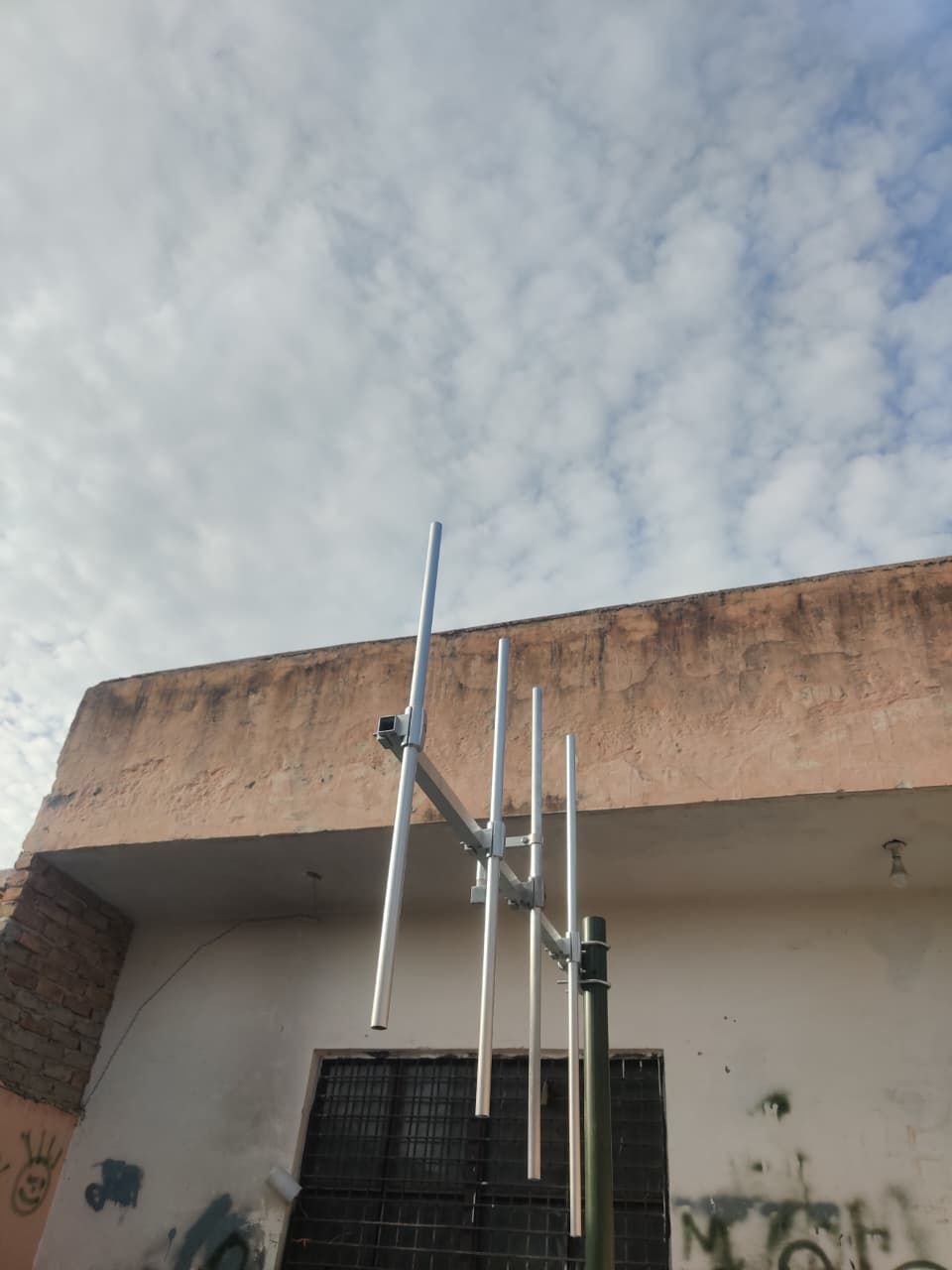

A Dual Stacked Yagi Antenna is a high-gain antenna system created by stacking two identical Yagi antennas vertically (or horizontally) and feeding them in phase.
This configuration increases the overall gain, narrows the beamwidth, and improves directivity, making it suitable for long-distance communication, base stations, telemetry, and point-to-point links.
Key Features :
Higher Gain compared to a single Yagi (typically +3 dB extra)
Narrow Beamwidth for long-distance & focused coverage
Stacked Configuration (vertical or horizontal) to increase directivity

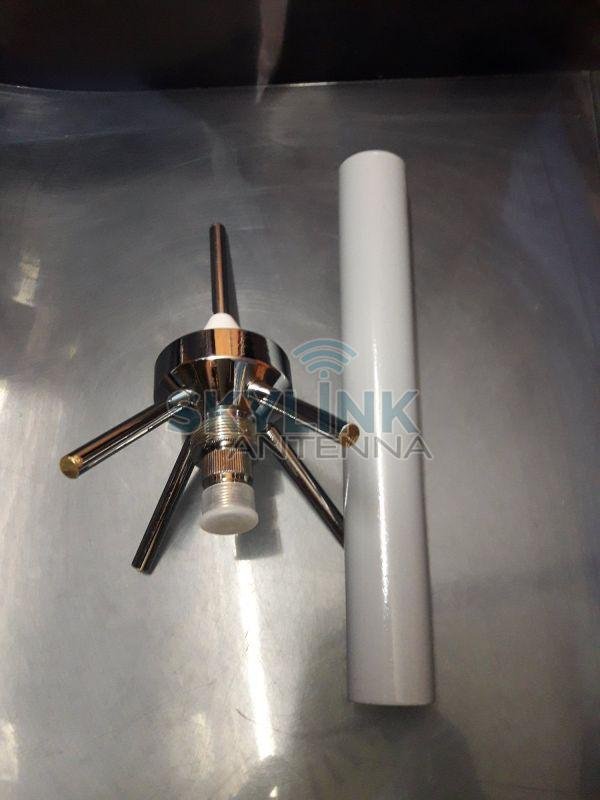

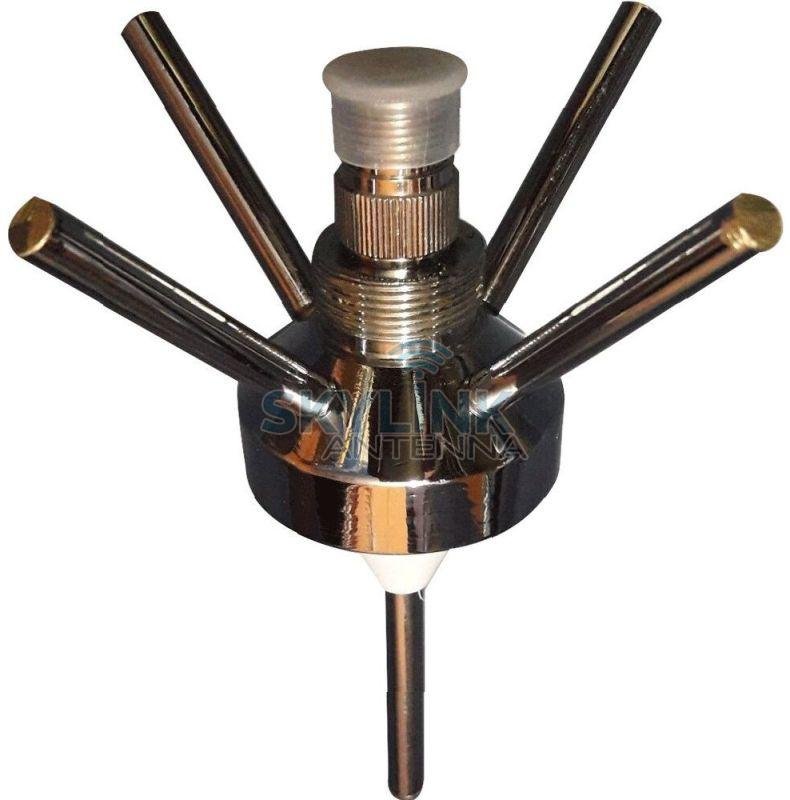

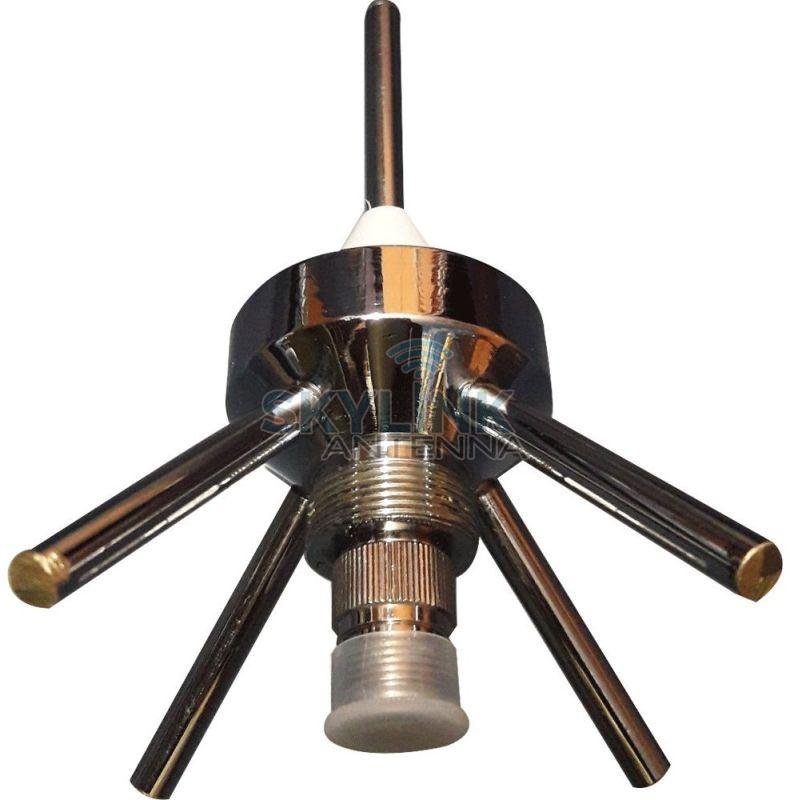

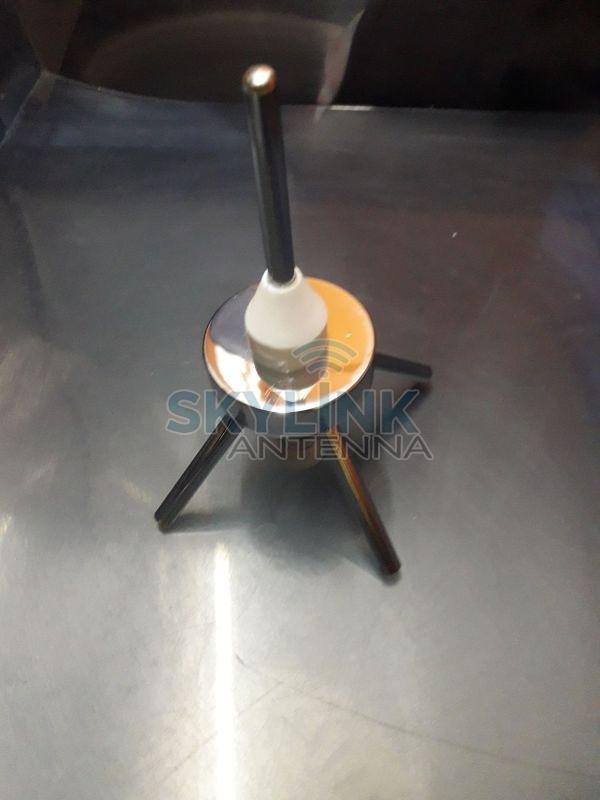

A Ground Plane Antenna is a simple, vertically polarized omnidirectional antenna that uses a radiating vertical element (called the radiator) and several horizontal or angled radial elements (called ground radials).
It is widely used in VHF, UHF, FM, and wireless communication systems because of its ease of construction, low cost, and reliable omnidirectional coverage.
A Helical Antenna is a wideband, directional antenna made by winding a conductor in a helix (spiral) shape above a ground plane. It is well-known for its circular polarization, high gain, and wide frequency coverage, which makes it ideal for satellite communication, telemetry, GPS, and aerospace applications.
It usually operates in axial mode, where the radiation is focused along the helix axis, producing circularly polarized end-fire radiation.
Key Features :
Circular Polarization → minimizes signal loss due to polarization mismatch
High Gain (10–15 dBi) → suitable for long-distance communication
Broad Bandwidth → covers wide frequency range
Compact Design → shorter than Yagi or LPDA for same gain
A Helical Antenna is a wideband, directional antenna made by winding a conductor in a helix (spiral) shape above a ground plane. It is well-known for its circular polarization, high gain, and wide frequency coverage, which makes it ideal for satellite communication, telemetry, GPS, and aerospace applications.
It usually operates in axial mode, where the radiation is focused along the helix axis, producing circularly polarized end-fire radiation.
Key Features :
Circular Polarization → minimizes signal loss due to polarization mismatch
High Gain (10–15 dBi) → suitable for long-distance communication
Broad Bandwidth → covers wide frequency range
Compact Design → shorter than Yagi or LPDA for same gain

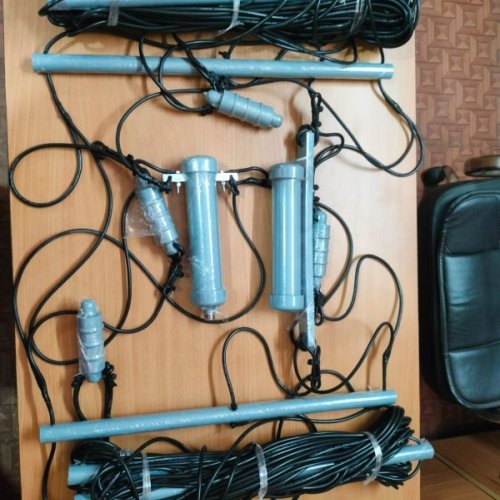

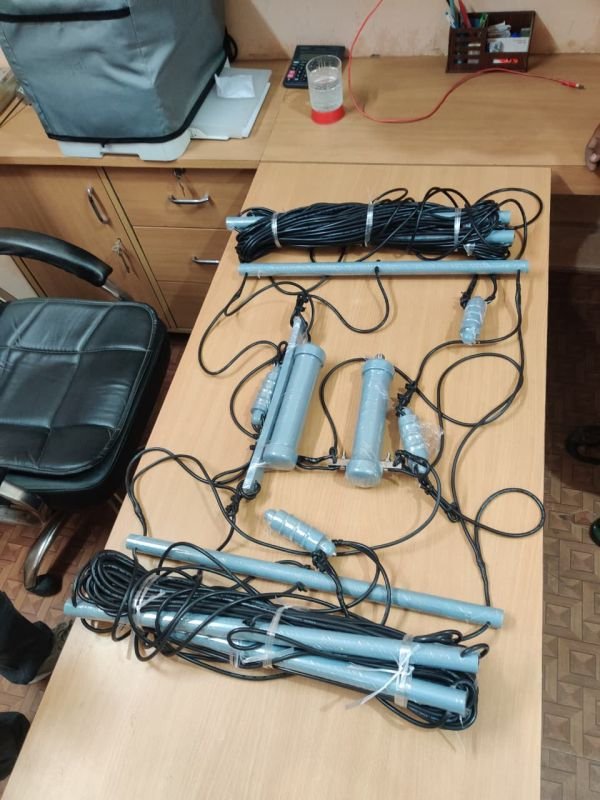

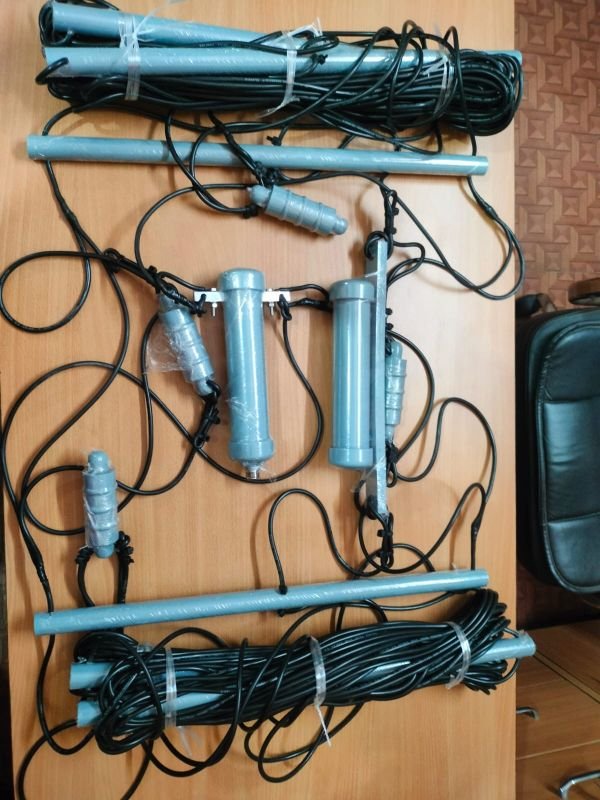

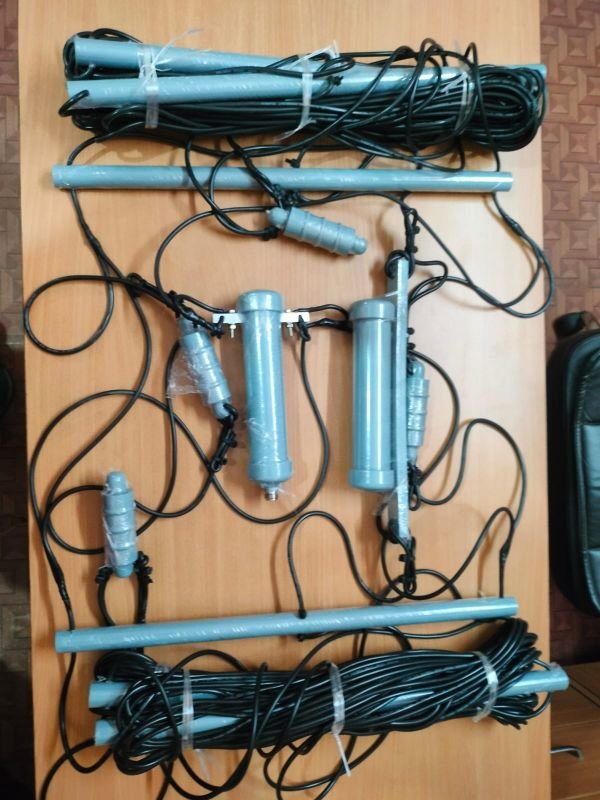

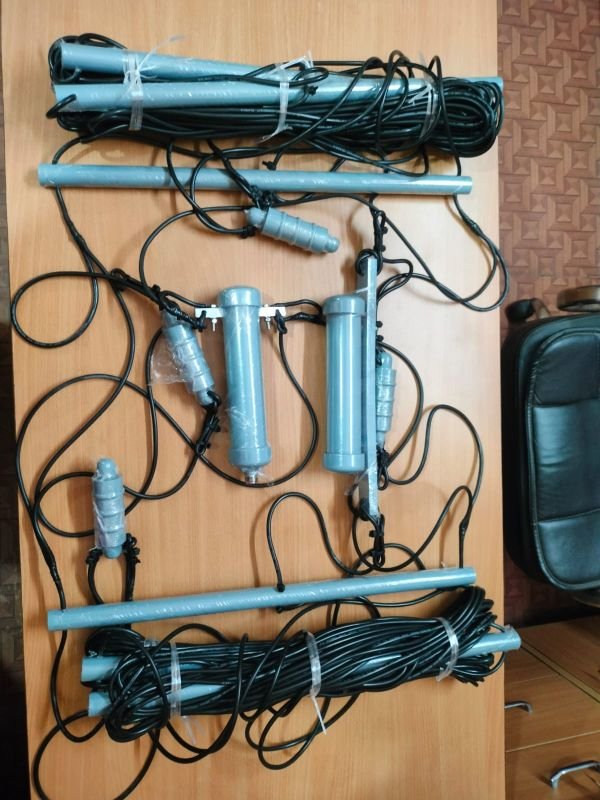

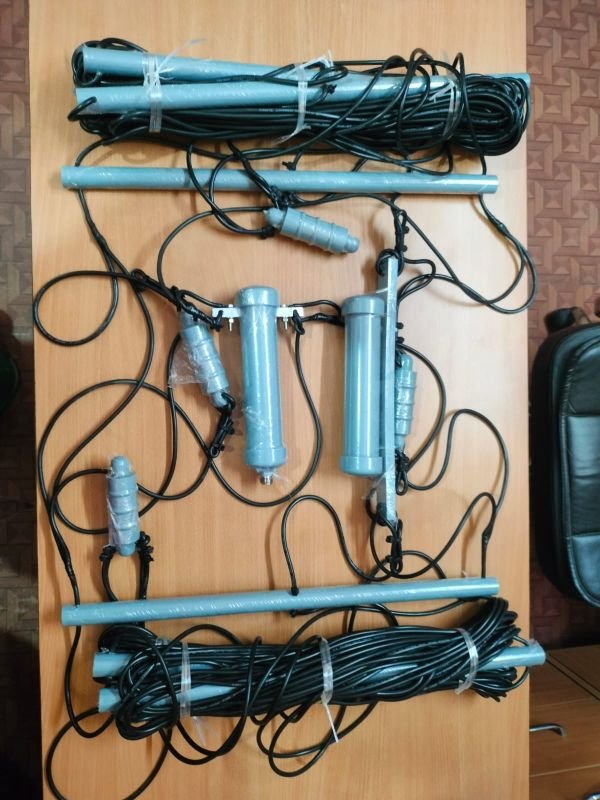

The term “HF broadband 3-folded (or 3-wire / 3-folded) dipole” typically refers to a broadband (wideband) HF antenna consisting of three parallel conductors (wires) forming a kind of extended folded structure, to increase bandwidth and raise feedpoint impedance (or flatten impedance variation) compared to a simple dipole. Below is a summary of typical / representative specifications and design considerations (with some examples), and then a generic “spec sheet template” for such antennas.
Extending that concept, a 3-wire (or “three-folded”) arrangement further increases the impedance and tends to flatten the impedance variation over frequency. In other words, more wires in parallel help broaden the frequency response and make the feedpoint impedance more stable.

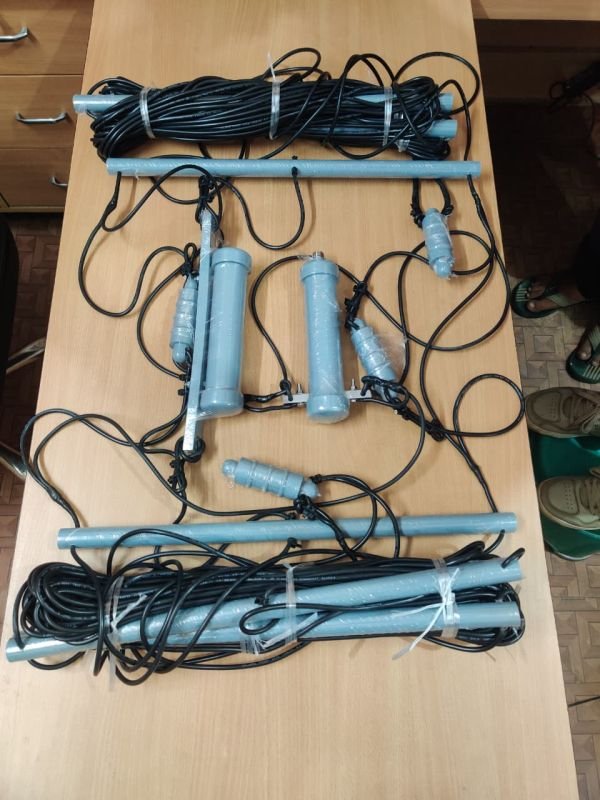

An HF Broadband Antenna is a high-frequency wire antenna designed to operate efficiently over a wide frequency range (typically 1.6 MHz to 30 MHz) without requiring manual tuning.
It is widely used for long-distance communication (beyond line-of-sight, via skywave/ionospheric reflection) in military, disaster recovery, maritime, and amateur radio systems.
Unlike narrowband HF dipoles, the broadband design ensures continuous coverage across the HF band for voice, data, and digital modes.

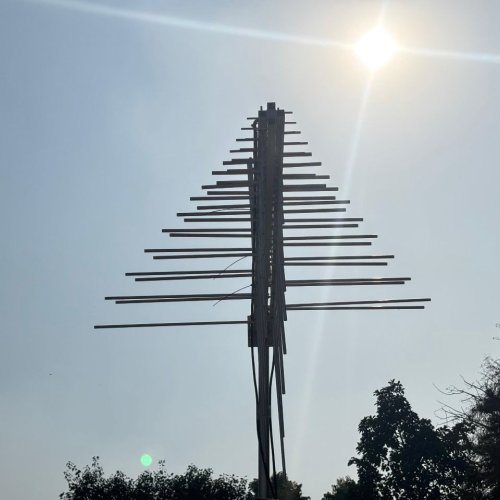

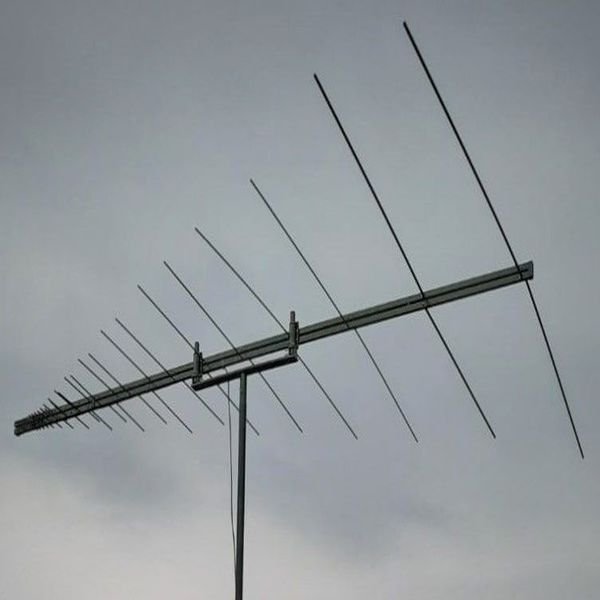

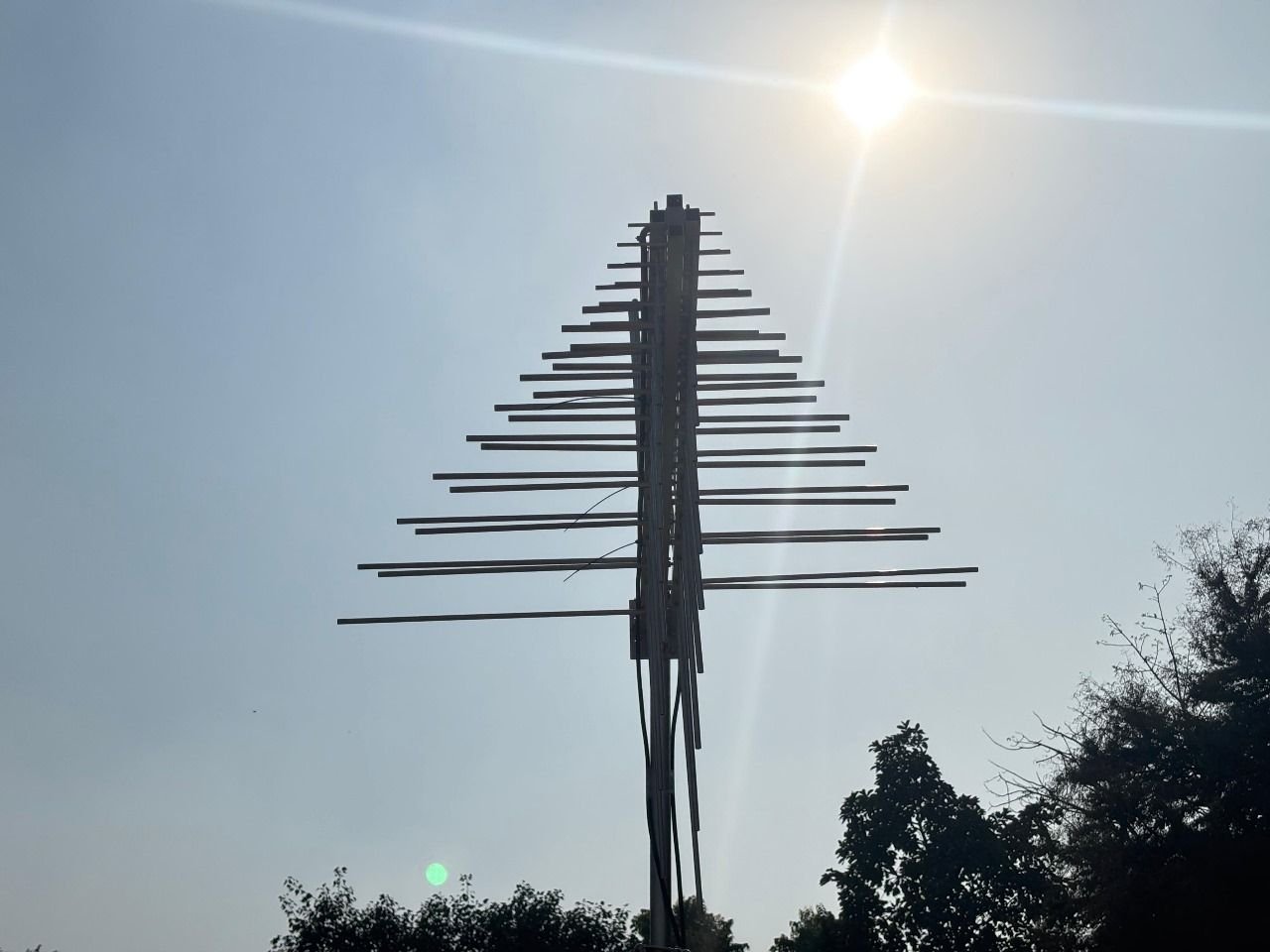

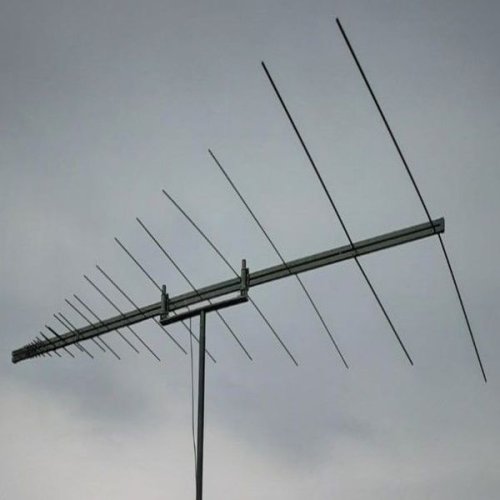

A Log Periodic Dipole Antenna (LPDA) is a wideband, directional antenna made up of multiple dipole elements arranged in a special logarithmic sequence. Unlike narrowband antennas, an LPDA maintains stable gain, impedance, and radiation pattern across a very wide frequency range.
It is widely used for VHF, UHF, surveillance, monitoring, and communication systems, where broad frequency coverage and reliability are required.
Key Features :
Broadband coverage – single antenna covers wide frequency range
An Omni-Directional Exposed Dipole Antenna is a broadband, vertically polarized antenna that provides 360° horizontal coverage. It is widely used for VHF, UHF, and communication systems where uniform coverage in all directions is required.
This antenna is rugged, weatherproof, and designed for continuous outdoor operation, making it highly reliable for commercial, industrial, and defense applications.
Key Features :
360° Horizontal Coverage – Perfect for omni coverage
Broad Frequency Range – Wideband operation for multiple channels
High Power Handling – Suitable for base station use
Weatherproof & Durable – Built to withstand harsh environmental conditions
Easy Mast Mounting – Simple installation on towers or poles
